PCB TRIPLE BAND EMBEDDED ANTENNA for W-Fi 6 Wi-Fi 6E Wi-Fi 7 & Bluetooth

M.2 NGFF Antenna for wireless 7, 6E wifi and bluetooth, WiFi 6, also including WiFi 6E new 6GHz band, Bluetooth, ZigBee

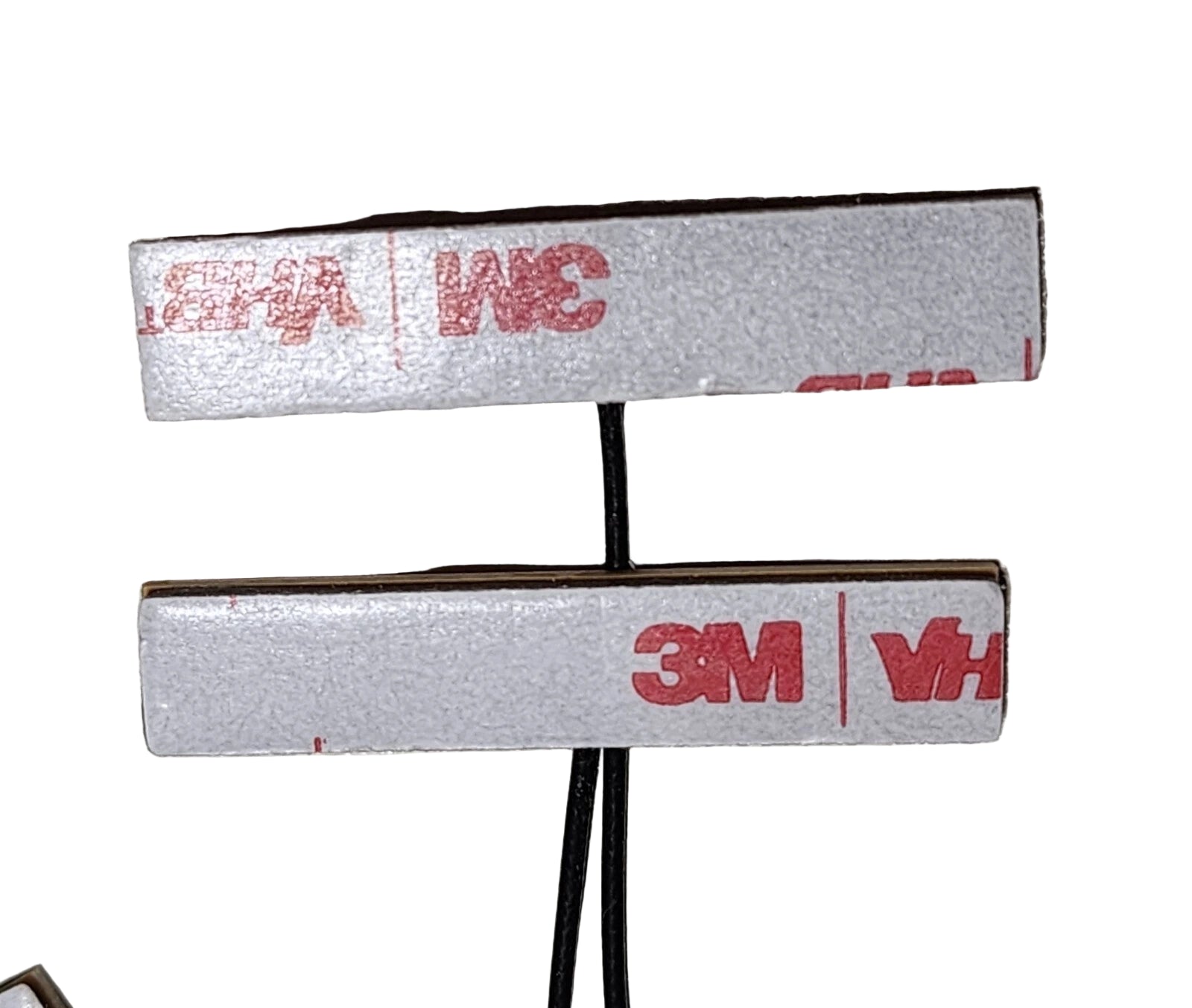

MHF4 connectors, aerial plates with sticker on the back

PCB antenna greatly increase reception over built-in antenna.

Cables length: around 37.5cm (14.4 inch)

Aerial plate size: Size 40.0 mm x 8.0 mm x 1.0 mm (designed to be installed on plastic surface)

• Adhesive backing on the PCB simplifies mounting within the device

• Global Frequency coverage

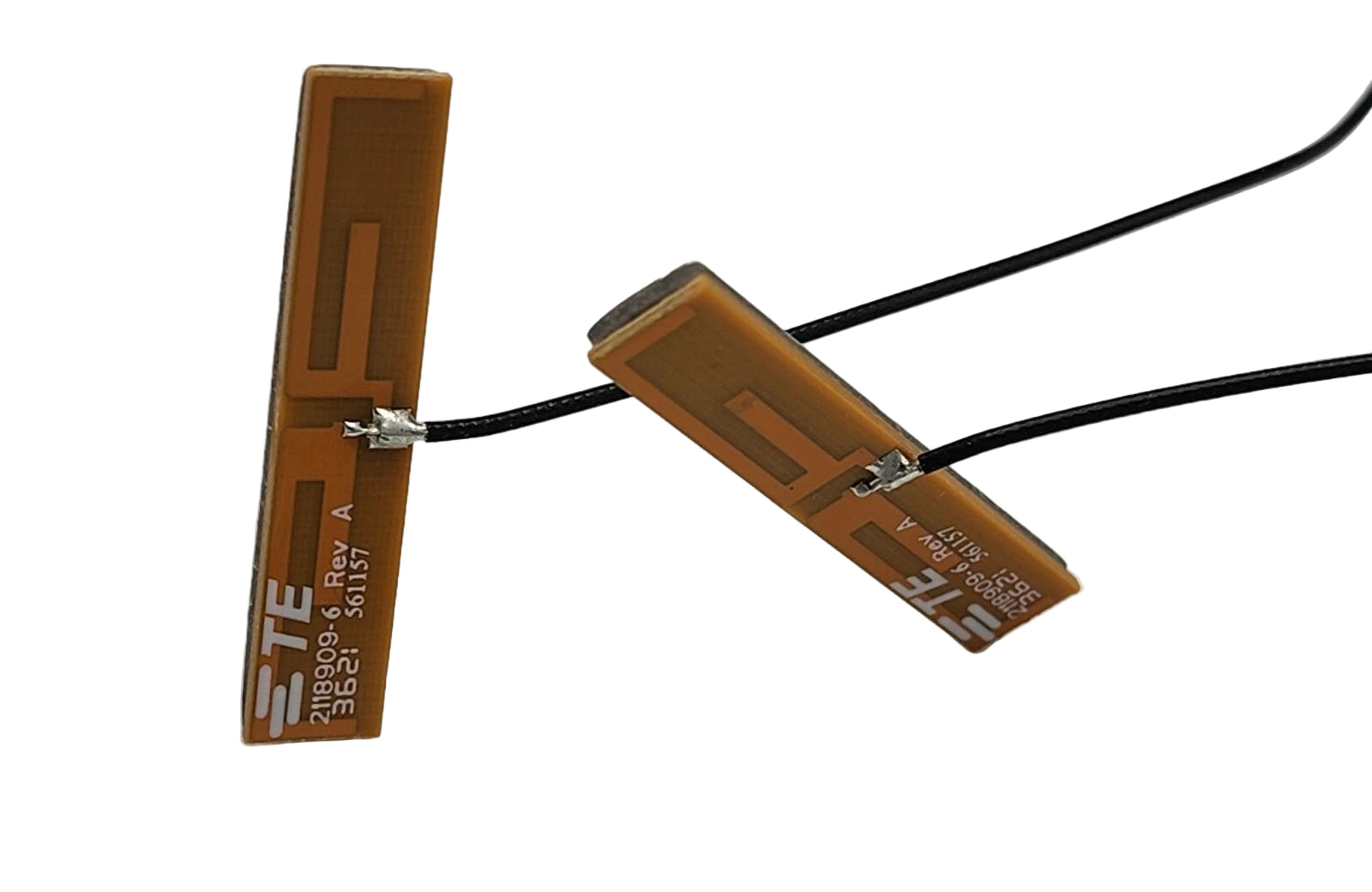

• PCB antenna assembly

1. Feed Point Impedance 50 ohms unbalanced
2. Polarization Linear
3. Size 40.0 mm x 8.0 mm x 1.0 mm

note:

1. Antenna designed to be mounted on plastic cover.

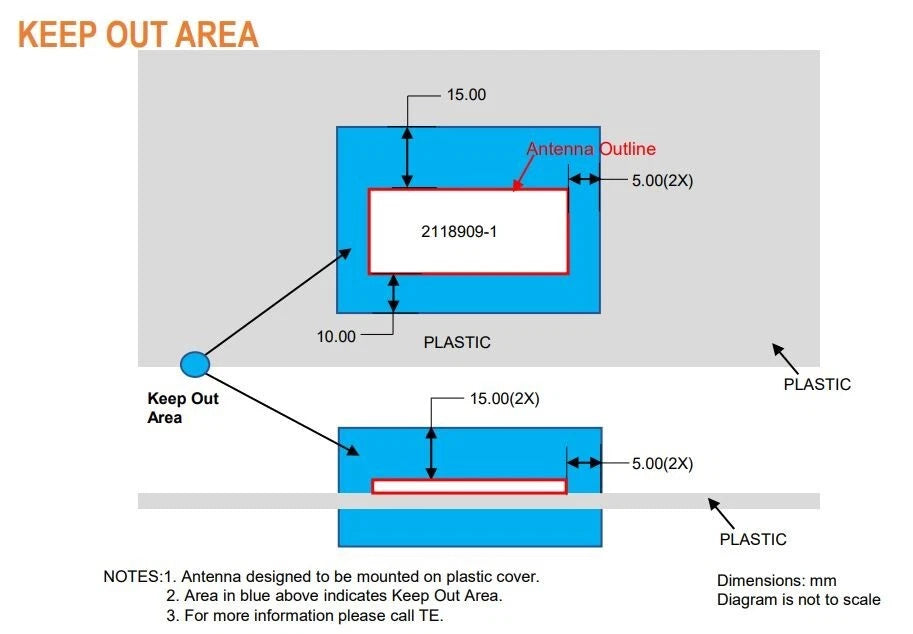

2. Area in blue above indicates Keep Out Area (Please review pictures included)

Packing List (bulk pack):

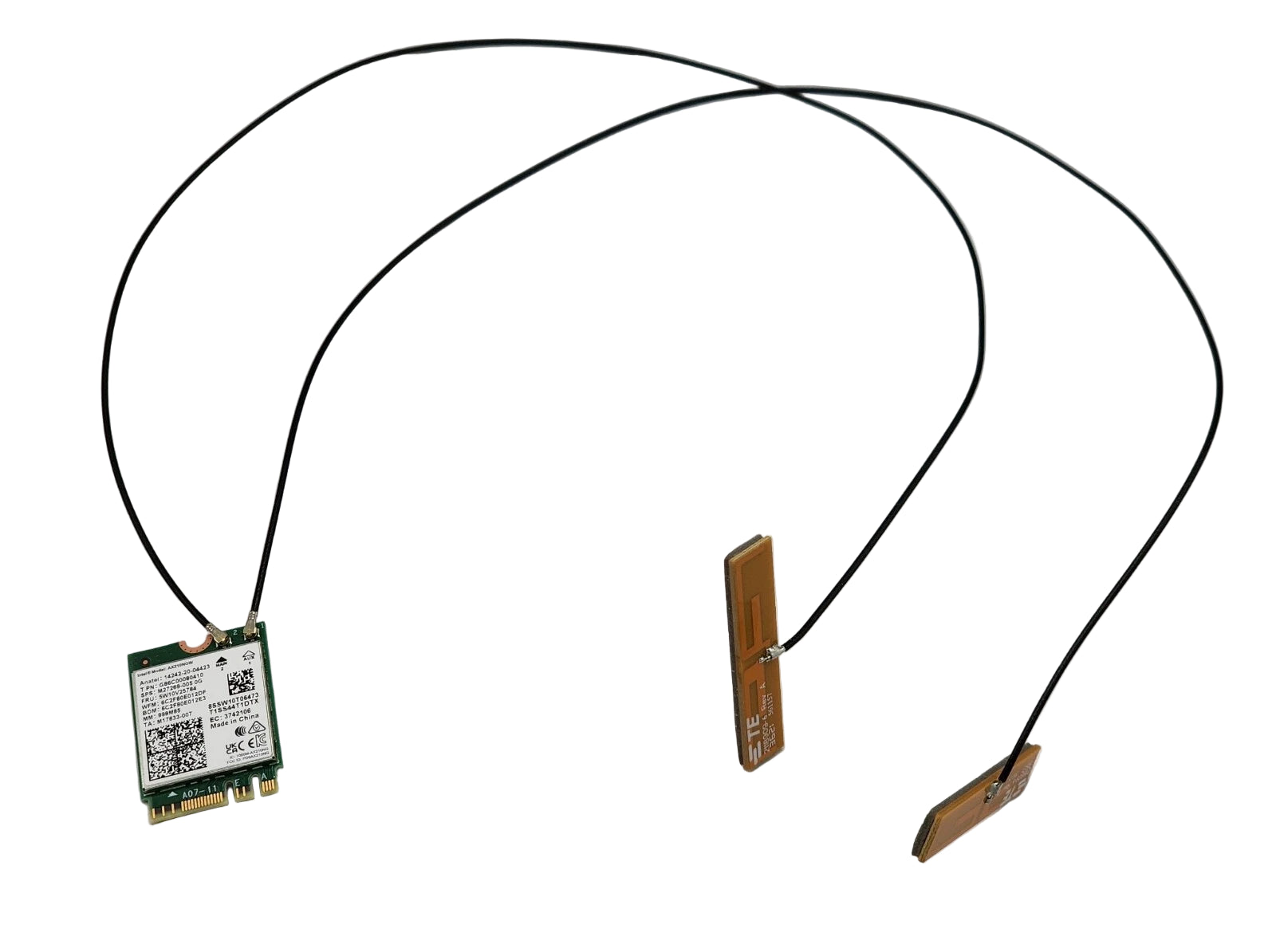

1 x Pair of internal antennas (14.42inch, 375mm), Please note: Wi-Fi card in photo is NOT included.
