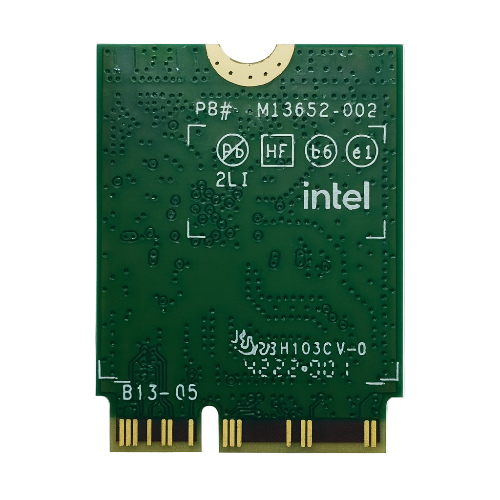

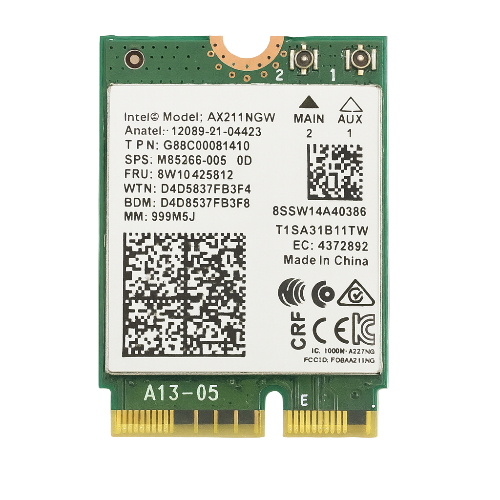

Intel AX211 WIFI 6E CNVio2 w/Tri Band 2.4 5 & 6GHz AX211.NGWG.NV no vPro

Technical Information

Wi-Fi Generation:   Wi-Fi 6E
Wireless LAN Standard:   IEEE 802.11ax
Bluetooth Standard:   Bluetooth 5.2
Network Band:   Tri Band
ISM Band:   Yes
UNII Band:   Yes
ISM Maximum Frequency:   2.40 GHz
UNII Maximum Frequency:   6 GHz
Wireless Transmission Speed:   2.40 Gbit/s

Interfaces/Ports

Host Interface:   M.2 CNVio2 (not backward compatible with CNVio1 such as Intel 9560)

Physical Characteristics

Form Factor:   Internal
Height:   0.9"
Width:   1.2"
Depth:   0.1"

Miscellaneous

Device Supported:            Intel based Notebook and motherboards.

Supported Operating Systems:            Windows 11, 64-bit*, Windows 10, 64-bit*, Linux*, Chrome OS*

AX211 requires a computer with 10th generation CPU or higher. Even though you can insert these CRF to a standard M.2 Key E socket, they are only compatible with a system designed with the CNVio2.

The Wi-Fi 6 AX211 adapter is a CRF (companion RF module) supporting the integrated wireless 802.11ax solutions from Intel. The solution provides Bluetooth 5 and 2x2 802.11ax Wi-Fi.The maximum throughput supported by the Wi-Fi 6e AX211 is a speedy 2.4 Gbps(160Mhz). The AX211NGW can provide Gigabit download speed1 and dramatically improve your connected experience at home, work, or on the go.
