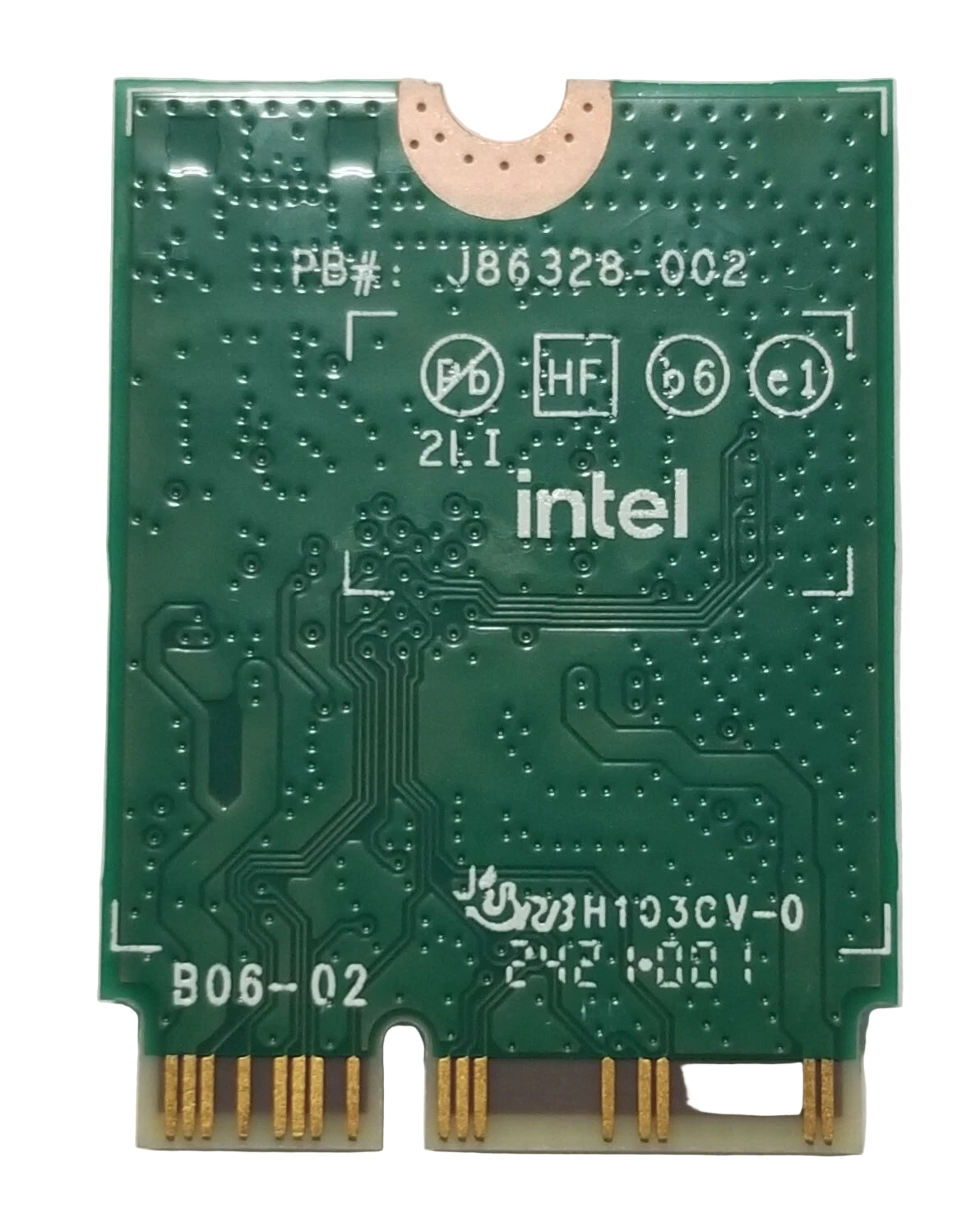

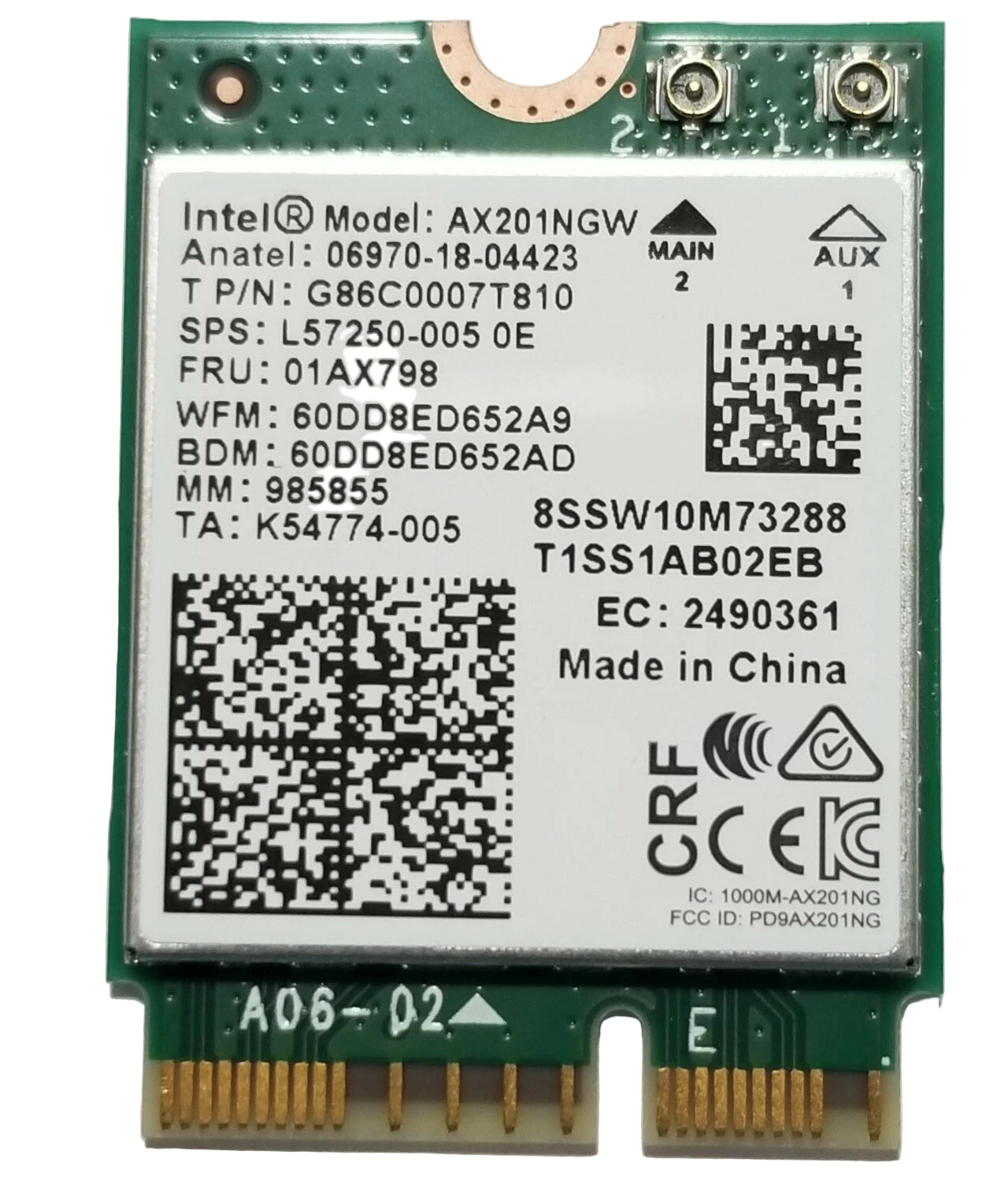

Intel AX201 802.11ac Wi-Fi 6 2.4Gbps Bluetooth 5.2 CNVio2 Key E

• Supported Operating Systems: Windows 10, 64-bit, Linux, Chrome OS
• Antenna: 2x2
• Networking Specifications: TX/RX Streams 2x2
• Bands: 2.4Ghz, 5Ghz (160Mhz)
• Max Speed: 2.4Gbps
• Wi-Fi CERTIFIED: WiFi 6 (802.11ax)
• Compliance: FIPS, FISMA
• Bluetooth Version: 5.2
• Integrated Bluetooth: Yes

Package Specifications

• Board Form Factor: M.2 2230, CNVio2 Key E (Intel Processors Only)
• Package Size: 22mm x 30mm x 2.4mm

System Interface Type: M.2: CNVio2 interface for notebook and desktop boards. Antenna for desktop applications is not included.

• Advanced Technologies: MU-MIMO: Yes
• Supported Under Intel vPro Technology: No
• Orthogonal Frequency-Division Multiple Access (OFDMA): Yes
